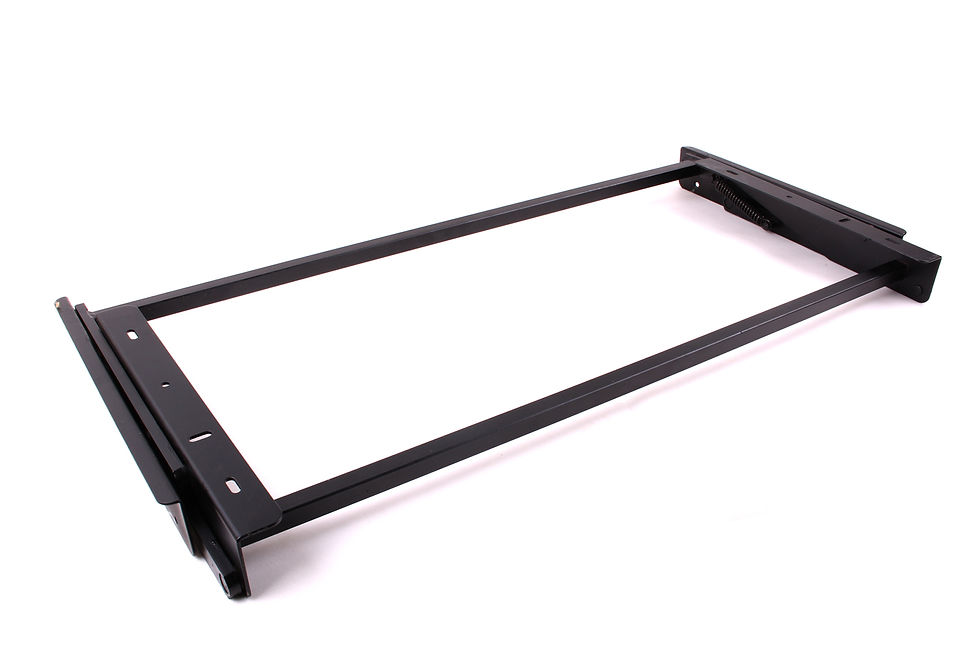

Lift Up Coffee Table Mechanism Hardware Fitting Furniture Hinge with Springs.

With this kind of lift hardware,you can turn a normal coffee table into a  functional coffee table, you will get more spacing.

Material is made by heavy duty metal(won't bend with this hard metal).Black finished

Space Saving.good for your projected

Mounting Screws are included (If you do not use the screws in the package,you can choose to use your own bolts,or other screws whatever you think it is better for your projects,please measure the holes and estimate the length of the screws you need).

No need to assemble.No instruction is included.Customers need to install it on your own.

Please note that this hinge can only  finish one coffee table or other table for your project.

Specifications :

(see the picture above)

Overall Dimension of length and Width and height when in folded position: 28" (L) x 13 3/4 '' (W) x 2 1/4 " (H).

The top can be raised up to approx.9 1/8'' and can be forwarded at 8 1/4''.

Hole to hole distance on top is approx. 25''.

The Thickness of the Support Bracket on each side : 8mm .It is very sturdy.

Weight capacity:  Heavy duty lift,it will hold between 100 and 200 lbs when it is opening.

Package included :

1 hinges and 2 buit-in springs.
